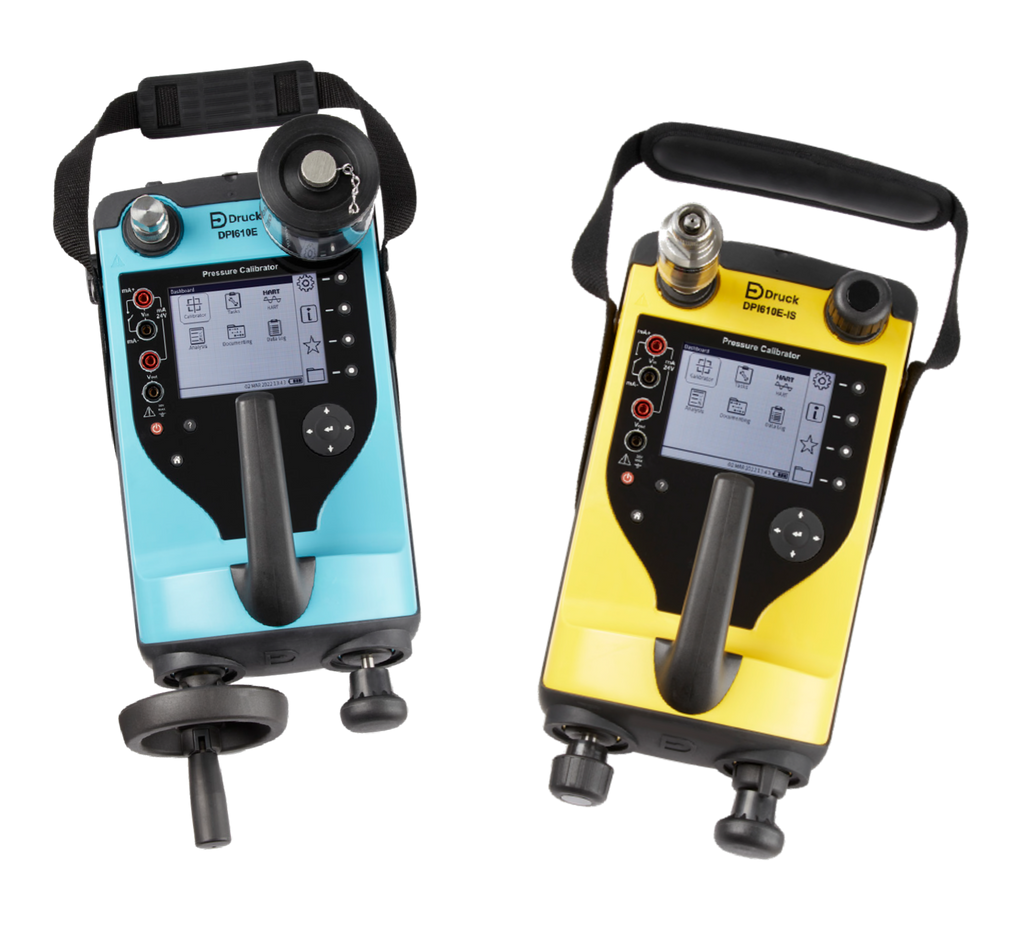

Druck - DPI610E Series Hand-held Pressure Calibrator

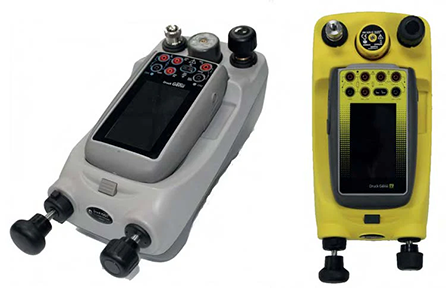

Combine one of the manual pressure generation stations PV621/PV622/PV623 with a multifunction calibrator from the DPI620GENii family and a PM620 Pressure Module, and you have a portable calibration system. Choose a pressure range from ±1 psig on up to 0 to 15,000 psi absolute, with uncertainty from 0.025% span. The pneumatic PV621 (300 psi) and PV622 (1500 psi), or the hydraulic PV623 (15K psi), generate pressures manually with no automatic pressure control.

The PV624 is capable of generating pressures up to 300 psi (20 bar). Use the hand pump to manually generate pressures before the PV624 automatically isolates the hand pump and seamlessly engages the fully automatic pressure generation to your setpoint. When combined with a multifunction calibrator from the DPI620GENii family and a PM620 Pressure Module, you have a portable calibration system. Choose a pressure range from ±1 psig on up to 0 to 300 psi gauge or absolute, with uncertainty from 0.025% span.

The PV624 is capable of automatically generating low differential pressures. When combined with a multifunction calibrator from the DPI620GENii family and a PM620LP Low Pressure Module, you have a portable low pressure calibration system. Choose from full scale ranges of±2.5 mbar (1 inH2O), ±10 mbar (5 inH20), to ±25 mbar (1 to 10 inH2O), with total uncertainty from 0.05% span.

The DPI610E-A is a portable calibrator for precision leak testing of aircraft pitot-static systems. Configured as a single-channel unit for testing altitude or airspeed parameters, it is fully self-contained and has manual pressure and vacuum generation and venting capabilities.
