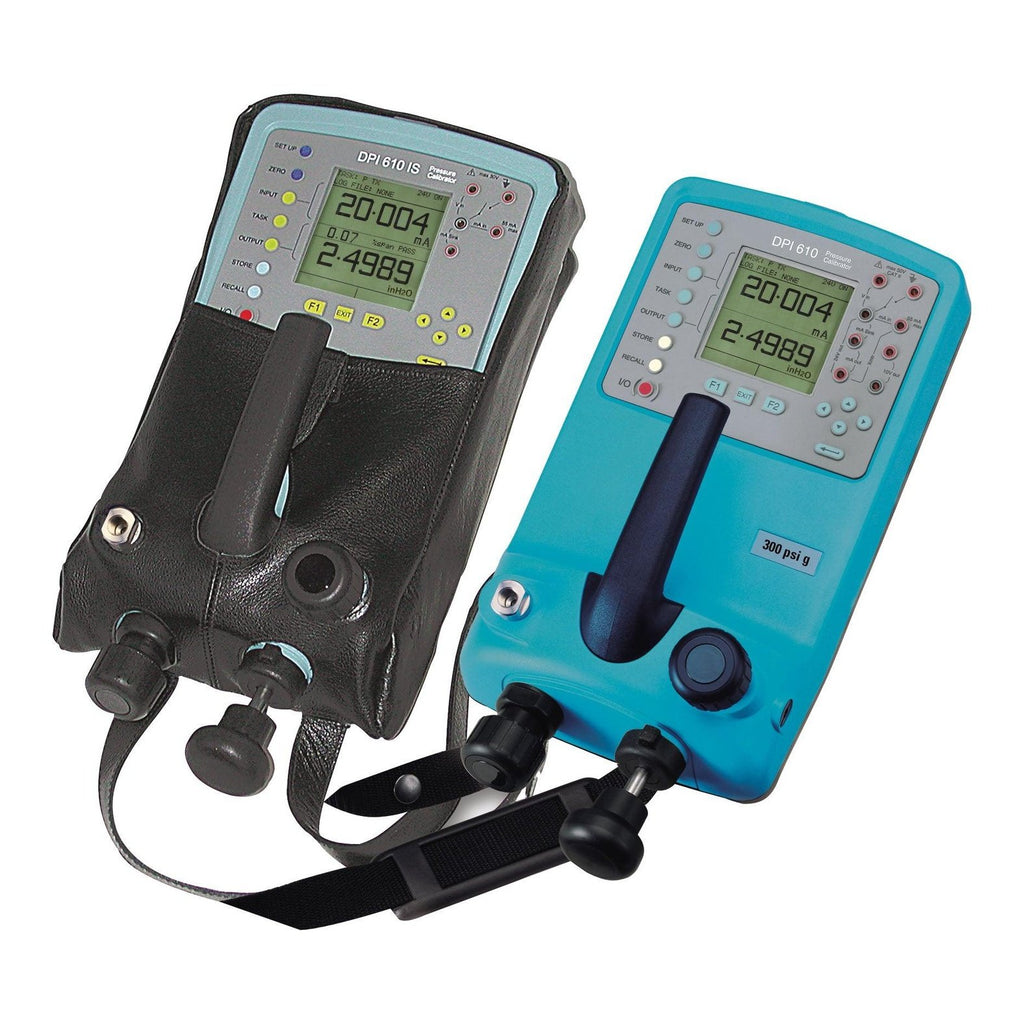

Druck - DPI 610/615 IS Pressure Calibrator

DPI610 / 615 IS Intrinsic Safe Pressure Calibrators - OVERVIEW
by Druck

Features:

• Pneumatic Ranges: -14.7 to 300 psi
• Hydraulic Ranges: up to 6,000 psi
• Up to 10,000 psi available with optional remote sensor
• Accuracy 0.025% full scale all ranges
• Integral combined pressure/vacuum pump
• Dual readout: input and output
• 4-20mA loop test: auto step and ramp
• RS232 interface and fully documenting version
• Remote pressure sensors available

DPI610 / 615 IS Intrinsic Safe Pressure Calibrators - DESCRIPTION
by Druck

The Druck DPI 610 / 615 IS Pressure Calibrators are Intrinsic Safe, combining practical design with state-of-the-art performance. The DPI 610 / 615 Calibrators are self-contained, battery-powered and contain a pressure generator, fine pressure control, and output measurement capabilities, as well as facilities for 4-20mA loop testing and data storage.

The DPI 610 and DPI 615 calibrators are functionally the same, except the DPI 615 version calculates errors and reports the pass/fail status during field tests. Problems and failures can be analyzed graphically for immediate assessment and correction or, at a more convenient time and location, by recalling the information from memory. This simple-to-use feature reduces calibration and maintenance times, eliminating human error.

When used in conjunction with calibration management software, the DPI 615 Calibrator greatly reduces the financial and resource burden imposed by quality systems, such as ISO 9000. As work orders are issued, object lists and procedures are downloaded to the GE DPI 615 pressure calibrator. In the field, these procedures configure the pressure calibrator for testing. Errors and pass/ fail status are reported and recorded in memory (as found or as left results) for later upload to the software. Calibration certificates can then be printed and plant maintenance systems updated. The whole documenting process is completed in a fraction of the time it takes using manual systems, eliminating human error.

Pneumatic and Hydraulic Versions Available:

The DPI 610 / 615 Calibrators are available as pneumatic calibrators with pressure ranges from -22 inHg to 300 psi with an internal pump that generates both pressure and vacuum. The pneumatic calibrator is compatible with most common gases. The hydraulic calibrator generates pressures up to 6000 psi via an internal screw pump and can read up to 10,000 psi from an external source. It is compatible with demineralized water and most hydraulic oils.

The standard instrument package includes a carrying case, rechargeable battery pack with charger, calibration certificate, manual, electrical leads, and other required components such as pump, volume adjuster, and vent valve (depending upon calibrator model).

DPI610 / 615 IS Intrinsic Safe Pressure Calibrators - DOCUMENTATION
by Druck

SPEC SHEETS:

• DPI610PC / DPI615PC Pneumatic Pressure Calibrator Data Sheet (PDF)

USER'S MANUAL:

• DPI610PC / DPI615PC Pneumatic Pressure Calibrator User's Manual (PDF)

DPI610 / 615 IS Intrinsic Safe Pressure Calibrators - ACCESSORIES
by Druck

Dirt Moisture Trap:

Druck - Dirt Moisture Trap (P/N: IDT600-1 and IDT600-2) Dirt moisture trap for DPI610/15 PC Portable Pressure Calibrators. Maximum pressure 20 bar / 300 psi. IDT600-1 (1/8 BSP threads) and IDT600-2 (1/8" NPT threads)

$239.00

Power Supply:

Druck - External Universal Power Supply (P/N: IOPSU-1) 12v external power supply for use with UPS-III (and other instruments)

$146.00
