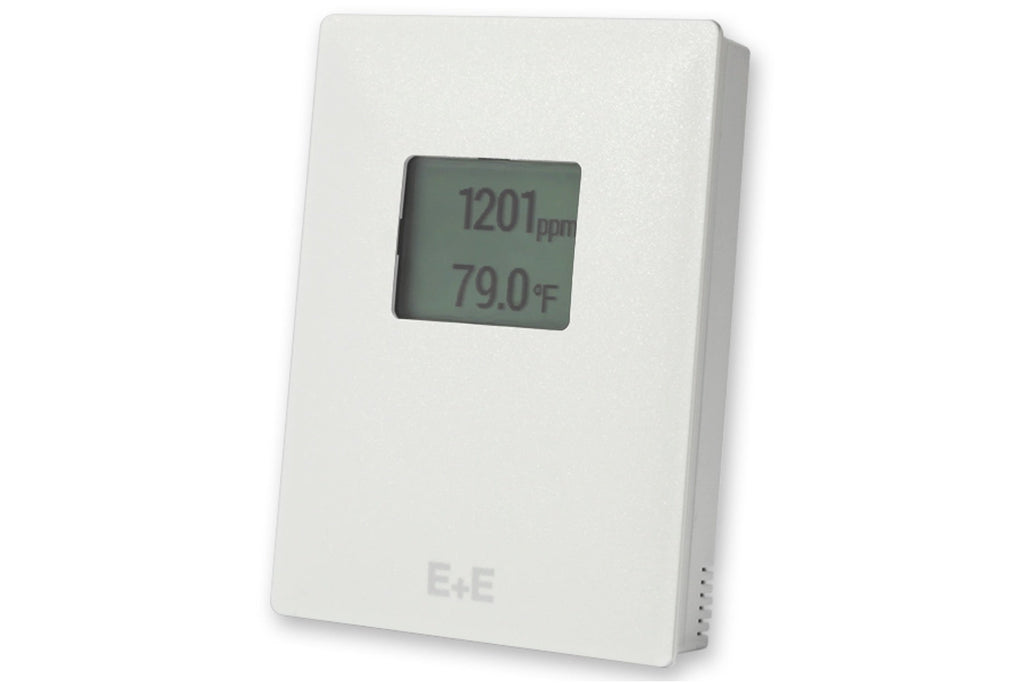

E+E - CDS201 - CO2 Temperature and Humidity Room Transmitter
The CDS201 is optimized for demand controlled ventilation and building automation in residential and commercial applications, and combines CO2, temperature (T) and relative humidity (RH) measurement in one device with modern design and state-of-the-art technology.
E+E - CDS201 - CO2 Temperature and Humidity Room Transmitter
The CDS201 is optimized for demand controlled ventilation and building automation in residential and commercial applications, and combines CO2, temperature (T) and relative humidity (RH) measurement in one device with modern design and state-of-the-art technology.
CDS201 - CO2 Temperature and Humidity Room Transmitter - OVERVIEW
by E+E Elektronik
Measurement Performance:
- High CO2 / RH/T accuracy
- Excellent long-term stability
- State-of-the-art E+E sensing elements
- CO2: NDIR dual wavelength
- RH/T: Protected by E+E proprietary coating; patented sensor technology
Enclosure and Connection:
- Innovative design avoids false air ingress
- Time-saving installation and wiring
- Snap-on without tools
- Push-in spring terminals
- All electronics are inside the front cover
- Smooth cover surface ▪ Dust repellent
- Easy cleaning ▪ EU and US formats
- UL94HB-approved enclosure material
Outputs:
- Three analog outputs
- 0 – 10 V ▪ 4 – 20 mA
- RS485 interface with
- Modbus RTU
- BACnet MS/TP
- Large graphic display
