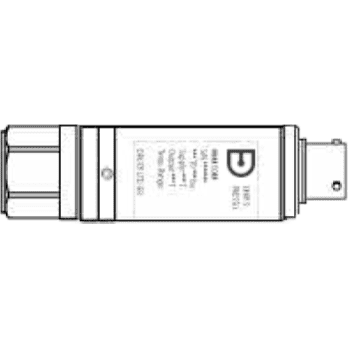

Druck - Pressure Transmitter P/N: PTX5062-TB-A3-CA-H6-PV-300-PSI-A

• 316 Stainless Steel (1 inch diameter)

• X = 0 ---> PDCR5000 = mV Passive, 4-wire
• X = 1 ---> PDCR5001 = mV Linearized, 4-wire
• X = 2 ---> PTX5002 = 4 to 20 mA, 2-wire
• X = 3 ---> PMP5003 = 0 to 5 Vdc, 4-wire
• X = 4 ---> PMP5004 = 0 to 5 Vdc, 3-wire
• X = 5 ---> PMP5005 = 1 to 6 Vdc, 3-wire
• X = 6 ---> PMP5006 = 0 to 10 Vdc, 4-wire
• X = 7 ---> PMP5007 = 0.5 to 4.5 V Ratiometric 3-wire
• X = 8 ---> PMP5008 = Configurable 4-wire
• X = 9 ---> PMP5009 = Configurable 3-wire

• From 1 to 10,000 psi (70 mbar to 700 bar)
• Custom pressure ranges available
• High over pressure capability
• Pressure Reference Choices: Gauge, Sealed Gauge, Absolute, Wet/Dry and Wet/Wet Differentials

Accuracy Options:
(% of Full Scale, Best Straight Line, includes hysteresis, repeatability and linearity)

• Industrial: ±0.20% BSL (Best Fit Straight-Line)
• Improved: ±0.10% BSL (Best Fit Straight-Line)
• Premium: ±0.04% BSL (Best Fit Straight-Line)

• Hazardous Area Certifications
• Pressure Connectors (32+)
• Select your custom Cable Length
• Temperature Compensation
• Factory Calibration
• After-Market Calibration
• Frequency response to 3.5 kHz (dependent on output type selected)

Druck - MIL-C-26482 Electrical Mating Connector (P/N: 163-009)

• 6-pin shell size 10 - electrical connector

Druck - UNIK5000 Cable Assemblies

• Select either Polyurethane or Raychem as your cable type
• For use with UNIK5000 pressure sensors with electrical connectors as follows:
• 6 ==> MIL-C-26482
• A ==> MIL-C-26482
• E ==> MIL-C-2648
  (alternate wiring, cable color signal definitions will be different)
• F ==> MIL-C-26482
  (alternate wiring, cable color signal definitions will be different)
• 7 ==> DIN 43650
• D ==> MICRO DIN (9.4 mm Pitch)
• G ==> M12 x 1 4-Pin

Starting at: $90.30

PIC - COOLING TOWER (for pressure gauges / transducers)

• Designed to protect pressure sensors or instruments in high temperature applications
• Can reduce media temps by up to 150° F, 200° F or 300° F (depending on model selected)
• 1/4" or 1/2" NPT connections only
• 316 Stainless Steel

Electro-Numerics - Micro Series 1/8 DIN Digital Process Meter

• This panel meter supplies power to your pressure sensor, with options for signal re-transmission, output relays, digital interfaces and more.
• Impressive update rate for the Micro-P: 60 times per second to the display, and retransmission update rate is 56 times per second (for 60 herz operation).
• Meter operates on AC power from 85 to 264Vac.
