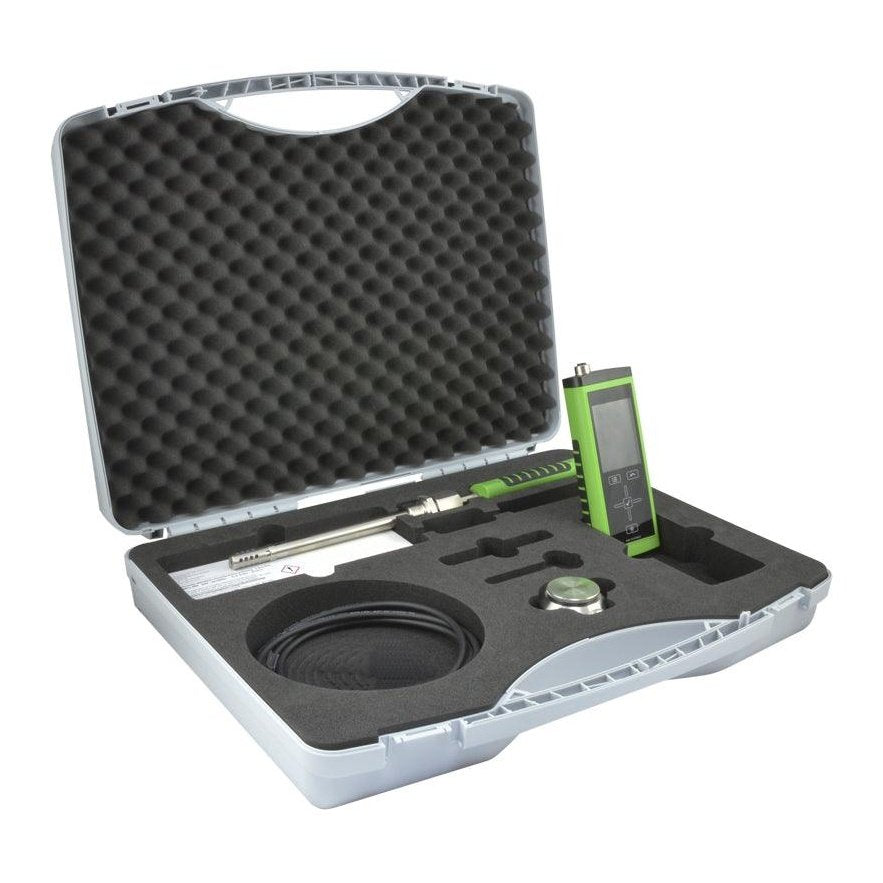

E+E - OILPORT30 Moisture in Oil Handheld Indicator SET

OILPORT 30 Moisture in Oil Hand-Held Indicator SET - OVERVIEW
by E+E Elektronik

Oilport 30 accurately measures water activity [aw] and temperature [T]. By entering oil-specific parameters, the hand-held meter calculates water content in oil (ppm).

Probes:

• Pressure-tight oil probe up to 20bar, together with the ball valve assembly set, can be fitted and removed without interrupting the oil circuit
• Short oil probe is ideal for quickly determining the moisture in oil samples

OILPORT 30 Moisture in Oil Hand-Held Indicator SET - DESCRIPTION
by E+E Elektronik

The OILPORT 30 Moisture in Oil Hand-Held Indicator is dedicated to portable monitoring of moisture and temperature in oil.

The simple and intuitive operation via TFT touchscreen and the built-in data logging function make the OILPORT 30 hand-held the ideal tool for fast and reliable oil analysis.

Measurands:

• Relative water content/water activity [aw]
• Absolute water content [ppm] Temperature [°C / °F]

OILPORT 30 Moisture in Oil Hand-Held Indicator SET - DOCUMENTATION
by E+E Elektronik

OILPORT 30 Moisture in Oil Hand-Held Indicator SET - ACCESSORIES
by E+E Elektronik

ACCESSORIES:

	E+E Elektronik - Humidity Calibration Kit (P/N: HA010400-HA011595) Transmitter for online monitoring of moisture in industrial oils and diesel fuel	Starting at: $89.00
	E+E Elektronik - Protective Cover for Oilport 30 (P/N: HA040907)	$123.00
	E+E Elektronik - Connection Cable, 5 Pole (P/N: HA010813-15)	$112.00
	E+E Elektronik - Ball Valve Set 1/2" ISO (P/N: HA050101)	$288.00
	E+E Elektronik - Ball Valve Set 1/2" NPT (P/N: HA050104)	$288.00

SPARE PARTS:

	E+E Elektronik - OMNIPORT30 Multifunctional Handheld Indicator Handheld meter with interchangeable digital probes for accurate measurement of humidity, temperature, CO2, air velocity and volumetric flow	$1,334.00
	E+E Elektronik - Pressure tight oil probe 1/2” ISO (P/N: LOGPROBE36-ISO)	$2,129.00
	E+E Elektronik - Pressure tight oil probe 1/2” NPT (P/N: LOBPROBE36-NPT)	$2,129.00
	E+E Elektronik - Short oil probe (P/N: LOGPROBE38)	$1,890.00
	E+E Elektronik - Carrying case (P/N: HA040906)	$242.00

EE060 Humidity and Temperature Probe with Voltage Output - CALIBRATION
by E+E Elektronik

Calibration intervals for E+E Elektronik humidity and temperature sensor products occurs once per year. SensorPros recommends the calibration equipment listed in the table below for following E+E product collections: Humidity-for Process Control, Humidity-Modules & Probes AND Humidity-HVAC Transmitters

Calibration of your E+E Elektronik Relative Humidity Sensors depends on the application and accuracy of the sensor model you have.

	E+E - Humidity Calibration Kit (P/N: HA010400-HA011595) The E+E Humidity Calibration Kit is a cost effective solution for calibrating humidity measuring instruments with sensing probes Ø 10-12 mm (0.4-0.47 inch). It is very easy to use and does not require a highly qualified technical staff. The kit consists of a humidity calibration chamber and a choice of E+E Humidity Standard Sets.	Starting at: $89.00
	Edgetech Instruments - Portable Calibrator - %RH, Dew Point, Temperature (P/N: RH-CAL) Features: Edgetech field proven Optical Chilled Mirror (OCM) technology Completely self-sufficient and portable humidity calibration system Highest accuracy available for both Relative Humidity (RH) and Ambient Temperature (AT): RH Accuracy: ± 0.5% over RH Range: 5% to 95% AT Accuracy: ± 0.2°C over AT Range: 10°C to 50°C Test chamber is temperature and RH controlled independently Accepts standard port sizes for RH probes: 10, 12, 18 mm, 1/2, and 3/4 inch diameter Automatic correction for mirror contaminants Certified measurements against NIST traceable standards Excellent software is available to automate your calibration process	$15,750.00
	E+E - High-precision Humidity Calibrator (P/N: HUMOR 20) Features: Highest accuracy reference device (0.3 - 0.9% RH) Fundamental dual pressure reactor principle Range: 10...95% RH Independent from the ambient temperature Very fast stabilization time: < 3 min/measuring point Automatic multiple point calibration cycles Portable	Starting at: $35,963.00

E+E Elektronik - PRODUCT CONFIGURATION - NOTES

1. Please configure your model number by pressing the "Configure Options" button.
2. After configuration, press the "Add to Cart" button to enter the shopping cart, and then either:

• Select the "Check Out" button to purchase online, OR
• Select the "Request a Quote" button and we will send you a formal quote within 1 business day or less.
