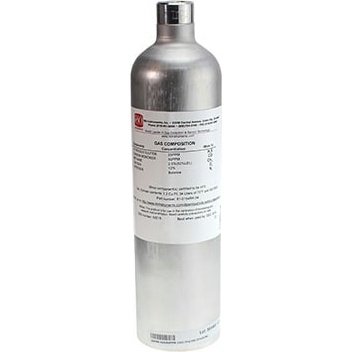

RKI Instruments - Test Gas for Calibration Station SDM-3R

The DPI610E handheld pressure calibrator is the latest and the sixth generation of the DPI600 family. Capable of measuring pneumatic pressures from 95% vacuum to 500psi (35bar) and hydraulic pressures up to 15,000psi 1,000bar).

The PV624 is capable of generating pressures up to 300 psi (20 bar), and when combined with a multifunction calibrator from the DPI620GENii family and a PM620 Pressure Module, you have a portable calibration system. Choose a pressure range from ±1 psig on up to 0 to 300 psi gauge or absolute, with uncertainty from 0.025% span. Use the hand pump to manually generate pressures before the PV624 automatically isolates the hand pump and seamlessly engages the fully automatic pressure generation to your setpoint.

The PV624 is capable of automatically generating low differential pressures. When combined with a multifunction calibrator from the DPI620GENii family and a PM620LP Low Pressure Module, you have a portable low pressure calibration system. Choose from full scale ranges of ±2.5 mbar (1 inH2O), ±10 mbar (5 inH20), or ±25 mbar (1 to 10 inH2O), with total uncertainty from 0.05% span.

Used with the PV624 pressure controller. Ranges from 2.5 mbar diff to 25 mbar diff (1 to 10 inH2O diff), with total uncertainty from 0.05% Span. The PM620LP has a true differential measurement via a fitted barbed low pressure (LP) connector and is supplied with 1 x barbed high pressure (HP) connector to fit a PV624 test port, 1 x equalizing valve, and 1M (3.3 ft) length of silicon twin tubing.
