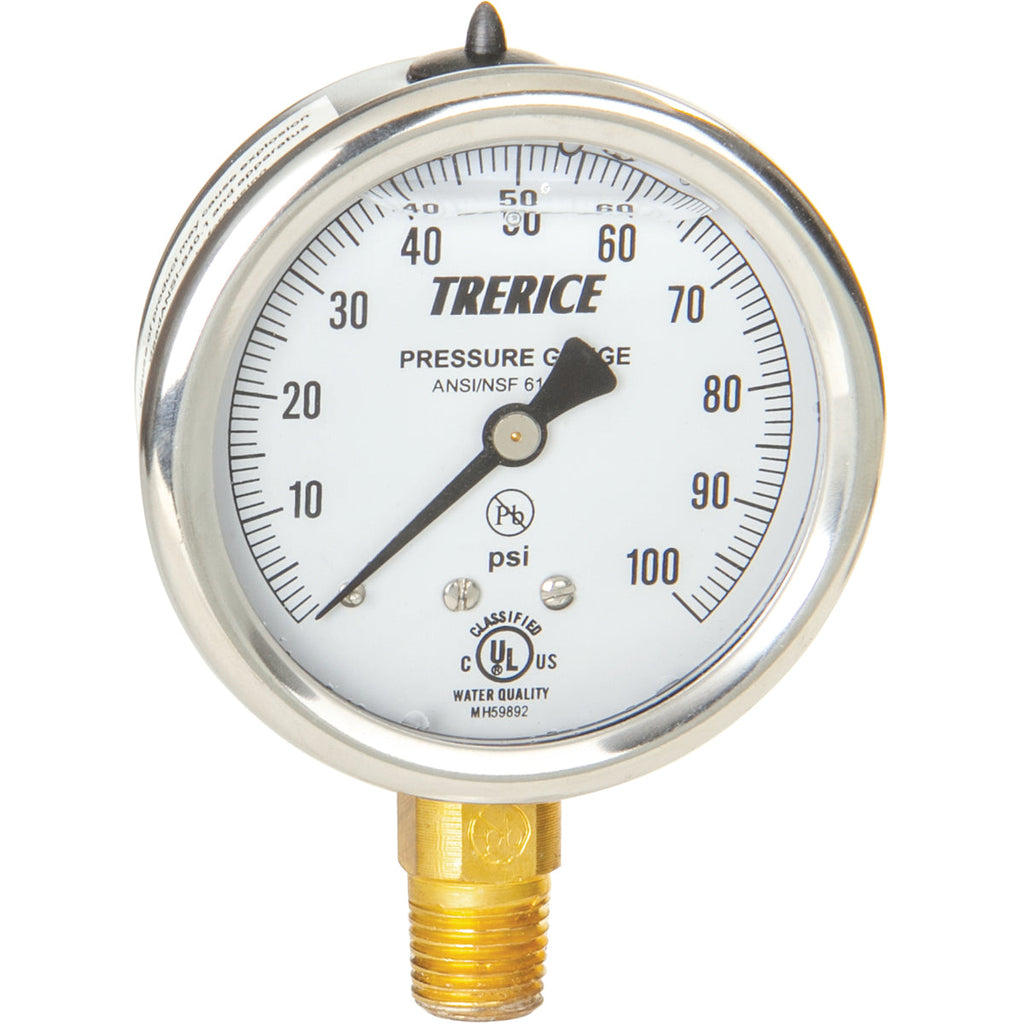

TRERICE - Industrial Pressure Gauge - D82LFB-25-02-L-A-30/100
Range = 30" Hg to 100 psi, 2.5" dial size, lower mount, 1⁄4 NPT brass, +/-1.6%, glycerine fill.
TRERICE - Industrial Pressure Gauge - D82LFB-25-02-L-A-30/100
Range = 30" Hg to 100 psi, 2.5" dial size, lower mount, 1⁄4 NPT brass, +/-1.6%, glycerine fill.
Industrial Pressure Gauge - D82LFB-25-02-L-A-30/100 - CONFIGURATION
by TRERICE
The Trerice D80 Series Industrial Gauge is designed for rugged performance requirements at an economical cost.
This liquid-filled gauge is furnished with a stainless steel case and crimped ring. Wetted parts include a bronze tube with a lead-free (PBF) brass socket and are certified to be lead-free (PBF).
Configured Model:
D82LFB Model = D80 Series Pressure Gauge, Liquid Filled (glycerine)
Wetted Parts: Bronze tube, Brass socket
Lead-Free (PBF), Meets NSF/ANSI Standards 372 and 61
-25 Dial Size = 2 1/2 inches
-02 Connection Size = 1/4 inch NPT Male
-L Connection Location = Lower Mount
-A Unit of Measure = psi gauge
-30/100 Pressure Range = 30" Hg to +100 psig
