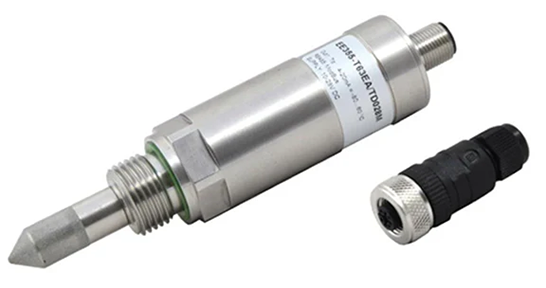

E+E - EE355 Dew Point Sensor / Transmitter

SENSOR CONNECTION CABLES:

• Allows connection to EE355 Dew Point Sensor / Transmitter Sensor
• Choose from three cable lengths: 1.5, 5 and 10 meters

SENSOR CONFIGURATOR:

E+E Elektronik - Modbus configuration adapter (P/N: HA011013)

• Allows changing the sensor configuration in the field
• Requires the use of the configuration software, EE-PCS

Product Configuration Software (EE-PCS)

• For Windows based personal computers
• Free download: www.epluse.com/configurator
• The free EE-PCS Product Configuration Software together with the optional adapter (P/N: HA011013) facilitates the configuration and adjustment of the EE355 in the field

SAMPLE CELLS:

E+E Elektronik - Basic Sampling Cell NPT (P/N: HA050105)

• Basic sampling cell, designed for a pressure range from 0...64 bar (0...928 psi), allows the integration of a dew point sensor with ease into a self-constructed sampling system

E+E Elektronik - Sampling Cell NPT with bleed screw (P/N: HA050107)

• Sampling cell is optimized for compressed air lines with pressure range 0...10 bar (0...145 psi)
• Flow of air can be adjusted with the bleed screw

E+E Elektronik - Basic Sampling Cell G 1/2 (P/N: HA050103)

• Basic sampling cell, designed for a pressure range from 0...64 bar (0...928 psi), allows the integration of a dew point sensor with ease into a self-constructed sampling system

E+E Elektronik - Sampling cell G 1/2" with Quick Connector (P/N: HA050102)

• Sampling cell is optimized for compressed airlines with a pressure range of 0...10 bar (0...145 psi), and flow of air is adjustable with the bleed screw
• G 1/2” ISO version features a quick connector suitable for standard DN7.2 air connection, allowing the sampling cell to be mounted and removed without process interruption

E+E Elektronik - Sampling cell G 1/2" for Atmospheric Dew Point (P/N: HA050106)

• Sampling cell is optimized for measuring the athmospheric dew point temperature in compressed airlines with a pressure range 0...10 bar (0...145 psi)
• Features a quick connector suitable for the standard DN7.2 air connection, allowing for the sampling cell to be mounted and removed without process interruption
• Needle valve enables you to zero the pressure in the sampling cell

E+E - Humidity Calibration Kit (P/N: HA010400-HA011595)

The E+E Humidity Calibration Kit is a cost effective solution for calibrating humidity measuring instruments with sensing probes Ø 10-12 mm (0.4-0.47 inch). It is very easy to use and does not require a highly qualified technical staff. The kit consists of a humidity calibration chamber and a choice of E+E Humidity Standard Sets.

Edgetech Instruments - Portable Calibrator - %RH, Dew Point, Temperature (P/N: RH-CAL)

Features:

• Edgetech field proven Optical Chilled Mirror (OCM) technology
• Completely self-sufficient and portable humidity calibration system
• Highest accuracy available for both Relative Humidity (RH) and Ambient Temperature (AT):
• RH Accuracy: ± 0.5% over RH Range: 5% to 95%
• AT Accuracy: ± 0.2°C over AT Range: 10°C to 50°C
• Test chamber is temperature and RH controlled independently
• Accepts standard port sizes for RH probes: 10, 12, 18 mm, 1/2, and 3/4 inch diameter
• Automatic correction for mirror contaminants
• Certified measurements against NIST traceable standards
• Excellent software is available to automate your calibration process

E+E - High-precision Humidity Calibrator (P/N: HUMOR 20)

Features:

• Highest accuracy reference device (0.3 - 0.9% RH)
• Fundamental dual pressure reactor principle
• Range: 10...95% RH
• Independent from the ambient temperature
• Very fast stabilization time: < 3 min/measuring point
• Automatic multiple point calibration cycles
• Portable
