Pressure Transmitters
Pressure Transmitters provide a pressure output in either 4-20 mA or 0-10 Vdc, with pressure ranges from 0 to 20,000 psi (depending on sensor) and Accuracy +/-0.35% BFSL, with excellent long-term stability. Used in many applications, such as hydraulic systems, process automation, pump system control, and various industrial environments.
Product Categories
TRERICE - 220TST Pressure Transmitter
Ranges from vacuum (-30" Hg to 0 PSIG) to positive pressure (0 to 15,000 PSI Gauge); Accuracy +/- 0.35% BSL, Select either 4-20mA or 0-10Vdc Output Signal, Stainless Steel wetted parts
TRERICE - 222THP High Pressure Transmitter
Ranges from 0 to 20,000 PSI through 0 to 60,000 PSI Sealed Gauge, Accuracy +/- 0.35% BFSL, Select either 4-20mA or 0-10Vdc Output Signal, Stainless Steel body, 17-4 PH SS wetted parts
TRERICE - 225TLP Low Pressure Transmitter
Inches of Water Column Gauge Ranges: from 0 to 4 up to 0 to 300" WC, and PSI Gauge Ranges: 0 to 3, 5 or 10 PSIG; Accuracy +/-0.60% BFSL, 17-4 PH SS wetted parts, 4-20 mA or 0-10Vdc Outputs.
TRERICE - 227THT High Temperature Pressure Transmitter
Continuous Process temperatures up to 320°F/160°C, Ranges from 30" Hg vacuum up to 0 to 15000 PSIG, Accuracy +/-0.35% BFSL, 17-4 PH SS wetted parts, 4-20 mA or 0-10Vdc Outputs.
TRERICE - 230TPP Precision Programmable Transmitter
Pressure ranges from 30" Hg to 0 through 0 to 15,000 psi, 4:1 Turndown (with optional programming tool), zero point adjustment using a magnet, 4-20 mA, and 0-10Vdc Outputs.

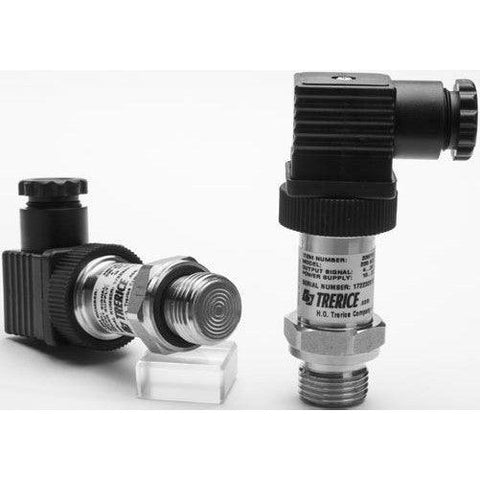

TRERICE - 235TFC Flush Connection Pressure Transmitter
Ranges from 0-10 PSI through 0 to 800 psi gauge, 4:1 Turndown, 4-20 mA and 0-10Vdc Outputs; Accuracy +/- 0.35% BFSL, 316L Stainless Steel wetted parts,

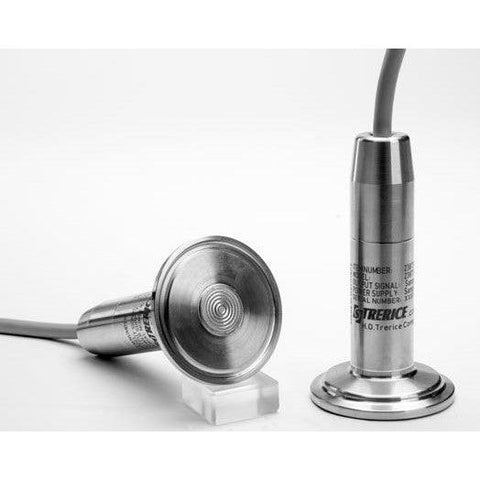

TRERICE - 238TSC Tri-Clamp Flush Mount Pressure Transmitter
Tri-Clamp Process Connections (1 1/2 or 2 inches), Ranges from 0-10 PSI through 0 to 600 psi gauge, 4:1 Turndown, 4-20 mA and 0-10Vdc Outputs; Accuracy +/- 0.35% BFSL, 316L Stainless Steel wetted parts,
