Trerice Company
H.O. Trerice Sensors include pressure gauges, pressure transmitters, temperature instrumentation, regulators & control valves.
Product Categories
TRERICE - Thermocouple Plug with Mating Jack
Available with a Type J or Type K Thermocouple. This sensor is of a simple design and provides for easy installation or replacement. The plug is
color-coded by thermocouple type, and the mating jack is polarized to ensure proper installation.
TRERICE - 700TA Series Sanitary Pressure Gauge with Integrated Diaphragm Seal
3A-approved, especially suited for the biopharma, dairy, and food processing industries. The field liquid fillable (no kit required) gauge has a stainless steel case, ring, and process housing. All wetted parts are stainless steel.
TRERICE - 230TPP Precision Programmable Transmitter
Pressure ranges from 30" Hg to 0 through 0 to 15,000 psi, 4:1 Turndown (with optional programming tool), zero point adjustment using a magnet, 4-20 mA, and 0-10Vdc Outputs.
TRERICE - 700Plus Industrial Transmitter Gauge
Designed to provide both local and remote pressure readings through the integration of an independent pressure transmitter to the pressure gauge.

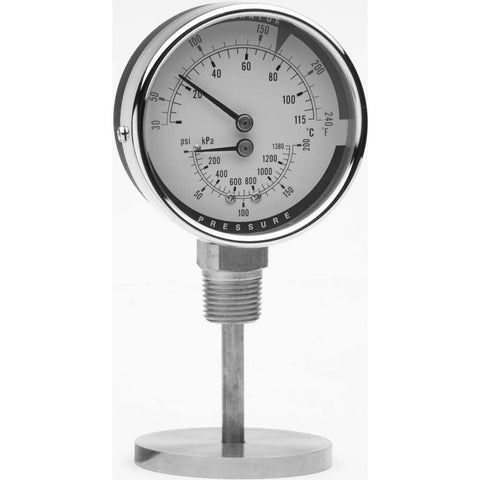

TRERICE - Tridicator - Temperature Indicator and Pressure Gauge
Designed specifically for hot water boilers, tridicators provide both temperature and pressure measurement, with only one access point to the boiler required. Available in 2-½” and 3” dial sizes with rear and bottom connections.
TRERICE - 222THP High Pressure Transmitter (P/N 222THP-08-C-A-0/20000-E1-3)
Ranges from 0 to 20,000 PSI through 0 to 60,000 PSI Sealed Gauge, Accuracy +/- 0.35% BFSL, Select either 4-20mA or 0-10Vdc Output Signal, Stainless Steel body, 17-4 PH SS wetted parts
TRERICE - 575SS Field Test Pressure Gauge
0.5% FS Accuracy, NIST traceable certificate of accuracy included with the serial number printed on the dial. Ships with a hard-sided carrying case with foam insert for shock resistance.
TRERICE - 220TST Pressure Transmitter (P/N 220TST-02-C-A-30/30-E1-3)
Pressure Range = 30" Hg Vacuum to 30 PSIG; Pressure Connection = 1/4 NPT Male; Electrical Connection = DIN 175301-803 (A) "std"; 4-20 mA Output; Accuracy +/- 0.35% BFSL; Stainless Steel Body; 17-4 PH SS wetted parts
TRERICE - 220TST Pressure Transmitter (P/N 220TST-02-C-A-0/15-E1-3)
Pressure Range = 0 to 15 PSIG, pressure connection is1/4 NPT Male, Electrical Connection = DIN 175301-803 (A) "std," 4-20 mA Output, Accuracy +/- 0.35% BFSL, Stainless Steel body, 17-4 PH SS wetted parts
TRERICE - 220TST Pressure Transmitter (P/N 220TST-02-C-A-0/10000-E1-3)
Pressure Range = 0 to 10000 PSIG, pressure connection is 1/4 NPT Male, Electrical Connection = DIN 175301-803 (A) "std", 4-20 mA Output, Accuracy +/- 0.35% BFSL, Stainless Steel body, 17-4 PH SS wetted parts
TRERICE - 220TST Pressure Transmitter (P/N 220TST-02-C-A-0-200-E9-3)
2Pressure Range = 0 to 200 PSIG, pressure connection is 1/4 NPT Male, Electrical Connection = M12 (5723) 4 pin, 4-20 mA Output, Accuracy +/- 0.35% BFSL, Stainless Steel body, 17-4 PH SS wetted parts
TRERICE - 220TST Pressure Transmitter (P/N 220TST-02-C-A-30/30-E2-3)
Pressure Range = 30" Hg Vacuum to 30 PSIG; Pressure Connection = 1/4 NPT Male; Electrical Connection = DIN 175301-803 (A) "mini"; 4-20 mA Output; Accuracy +/- 0.35% BFSL; Stainless Steel Body; 17-4 PH SS wetted parts
TRERICE - 220TST Pressure Transmitter (P/N 220TST-02-C-A-0/30-E1-3)
Pressure Range = 0 to 30 PSIG, pressure connection is 1/4 NPT Male, Electrical Connection = DIN 175301-803 (A) "std," 4-20 mA Output, Accuracy +/- 0.35% BFSL, Stainless Steel body, 17-4 PH SS wetted parts
TRERICE - 220TST Pressure Transmitter (P/N 220TST-02-C-A-0/60-E1-2)
Pressure Range = 0 to 60 PSIG, pressure connection is 1⁄4-inch NPT Male, Electrical Connection = DIN 175301-803 (A) "std," 0-10 Vdc (3-wire), Accuracy +/- 0.35% BFSL, Stainless Steel body, 17-4 PH SS wetted parts
TRERICE - 220TST Pressure Transmitter (P/N 220TST-02-C-A-0/60-E1-3)
Pressure Range = 0 to 60 PSIG, pressure connection is 1/4 NPT Male, Electrical Connection = DIN 175301-803 (A) "std," 4-20 mA Output, Accuracy +/- 0.35% BFSL, Stainless Steel body, 17-4 PH SS wetted parts
TRERICE - 220TST Pressure Transmitter (P/N 220TST-02-C-A-0/10000-E2-3)
Pressure Range = 0 to 10000 PSIG, pressure connection is 1/4 NPT Male, Electrical Connection = DIN 175301-803 (A) "mini", 4-20 mA Output, Accuracy +/- 0.35% BFSL, Stainless Steel body, 17-4 PH SS wetted parts
TRERICE - 220TST Pressure Transmitter (P/N 220TST-02-C-A-0/100-E1-3)
Pressure Range = 0 to 100 PSIG, pressure connection is 1/4 NPT Male, Electrical Connection = DIN 175301-803 (A) "mini", 4-20 mA Output, Accuracy +/- 0.35% BFSL, Stainless Steel body, 17-4 PH SS wetted parts
TRERICE - 220TST Pressure Transmitter (P/N 220TST-02-C-A-0/160-E1-3)
Pressure Range = 0 to 160 PSIG, pressure connection is 1/4 NPT Male, Electrical Connection = DIN 175301-803 (A) "std," 4-20 mA Output, Accuracy +/- 0.35% BFSL, Stainless Steel body, 17-4 PH SS wetted parts
TRERICE - 220TST Pressure Transmitter (P/N 220TST-02-C-A-0/160-E2-3)
Pressure Range = 0 to 160 PSIG, pressure connection is1/4 NPT Male, Electrical Connection = DIN 175301-803 (A) "mini", 4-20 mA Output, Accuracy +/- 0.35% BFSL, Stainless Steel body, 17-4 PH SS wetted parts
TRERICE - 220TST Pressure Transmitter (P/N 220TST-02-C-A-0/200-E1-3)
Pressure Range = 0 to 200 PSIG, pressure connection is 1/4 NPT Male, Electrical Connection = DIN 175301-803 (A) "std," 4-20 mA Output, Accuracy +/- 0.35% BFSL, Stainless Steel body, 17-4 PH SS wetted parts
