E+E - EE07 Humidity and Temperature Probe with Digital Output

EE07 Humidity and Temperature Probe with Digital Output - OVERVIEW
by E+E Elektronik

Key Features:

• RH Accuracy:
• ±2 % RH (0...90 % RH)
• ±3 % RH (90...100 % RH)
• Outstanding long-term stability
• Output:
• Utilizes the E+E Elektronik E2 digital serial interface
• Interchangeable probes plugs into the EE220 Humidity and Temperature Transmitter
• Low power version EE07-02

Typical Applications:

• Humidifiers and dehumidifiers
• Meteorology
• Building automation
• Artificial snow machines
• Data loggers, handheld meters
• Battery-powered measurement devices

EE07 Humidity and Temperature Probe with Digital Output - DESCRIPTION
by E+E Elektronik

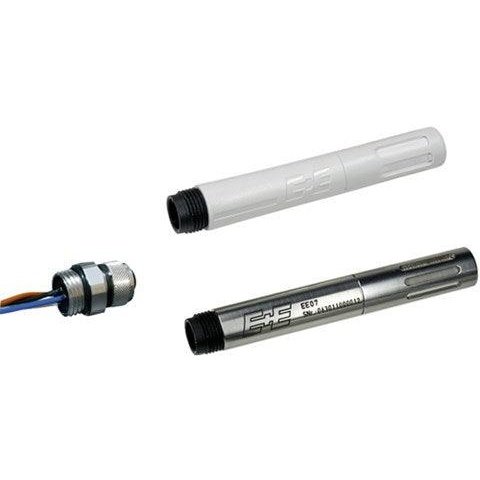

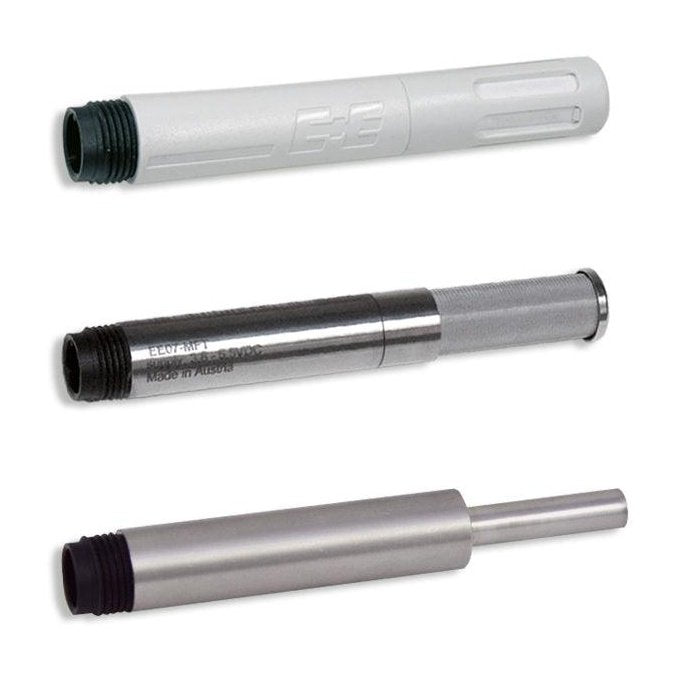

The EE07 digital probe is available in a polycarbonate and stainless steel enclosure and measures humidity and temperature accurately over a wide temperature range.

With the choice of appropriate filter cap, EE07 is suitable for a variety of demanding applications. The compact design and M12 connector allow for smooth system integration. For meteorology and other outdoor applications, the EE07 can be used with the optional radiation shield. If desired, the probe setup and adjustment can be performed with an optional configuration kit.

EE07-02 is an EE07 version optimized for very low power consumption, ideal for battery-powered measurement devices.

EE07 Humidity and Temperature Probe with Digital Output - DOCUMENTATION
by E+E Elektronik

EE07 Humidity and Temperature Probe with Digital Output - ACCESSORIES
by E+E Elektronik

Please consider these optional accessories:

	E+E Elektronik - Flange Coupling Connector (P/N: HA010705) M12x1 flange coupling L = 50 mm (2“) ± 3	$10.00
	E+E Elektronik - Connection Cables (P/N: HA010819-21) Allows you to connect to your sensor, cable lengths available in are 1.5, 5 and 10 meters	Starting at: $110.00
	E+E Elektronik - Radiation Shield for EE310 (P/N: HA010502) Radiation shield with fixed clamping ring (M20x1.5) for probes with Ø12mm (0.47“)	$288.00
	E+E Elektronik - Protection Cap M12 Female Connector (P/N: HA010781)	$10.00
	E+E Elektronik - Protection Cap M12 Male Connector (P/N: HA010782)	$10.00
	E+E Elektronik - Product Configuration Adapter (EE-PCA) EE-PCA is an adapter kit used to connect the EE300Ex and other E+E measurement devices to a personal computer's RS232 or USB port. Used together with the Product Configuration Software (EE-PCS)	$989.00
	E+E Elektronik - Duct Mounting Kit for EE07 Probe (P/N: HA010209) Duct mounting kit for the EE07 Probe used on the EE220 Temperature and Humidity Transmitter	$253.00

Humidity and Temperature Probe Filter Caps for 12mm Diameter Probes - FILTER CAPS
by E+E Elektronik

For a particular application, the right choice of filter cap is essential for your measurement and assures the best results for long term performance.

Upon initial purchase of your particular relative humidity/temperature probe, you will be able to select the filter along with the probe together. To purchase a filter cap separately, the following table below is a complete list for you so you can do that. It might be a good idea in some cases to have spare filters on hand, or you might need a replacement filter. Whatever the reason, select the one you want and add to your cart for purchase!

	E+E Elektronik - Membrane Filter Cap for 12 mm Probes (P/N: HA010101) Applications: Building automation Dusty environment Temperature range (-40 to 80°C)	$44.00
	E+E Elektronik - Stainless Steel Sintered Filter Cap for 12 mm Probes (P/N: HA010103) Applications: Industrial process control Agriculture Livestock barns Temperature range (-40 to 180°C)	$62.00
	E+E Elektronik - PTFE Filter Cap for 12 mm Probes (P/N: HA010105) Applications: Industrial process control Chemical industry Very polluted environments Temperature range (-40 to 180°C)	$77.00
	E+E Elektronik - Metal Grid Filter Cap for 12 mm Probes (P/N: HA010106) Applications: Climate Control Dryers and humidifiers HVAC Temperature range (-40 to 120°C)	$62.00
	E+E Elektronik - Stainless Steel Grid Filter Cap for 12 mm Probes (P/N: HA010109) Applications: Industrial Process Control Clean rooms Temperature range (-40 to 180°C)	$156.00
	E+E Elektronik - H2O2 Filter Cap for 12 mm Probes (P/N: HA010115) Applications: Pharma Biotech Sterilization with H2O2 Temperature range (-40 to 180°C)	$354.00
	E+E Elektronik - PTFE Stainless Steel Filter Cap for 12 mm Probes (P/N: HA010114) (and Replacement PTFE membrane (P/N: HA010114ME)) Applications (For EE33-J and EE33-K in): Meteorology, outdoor Climate control	Starting at: $178.00

EE060 Humidity and Temperature Probe with Voltage Output - CALIBRATION
by E+E Elektronik

Calibration intervals for E+E Elektronik humidity and temperature sensor products occurs once per year. SensorPros recommends the calibration equipment listed in the table below for following E+E product collections: Humidity-for Process Control, Humidity-Modules & Probes AND Humidity-HVAC Transmitters

Calibration of your E+E Elektronik Relative Humidity Sensors depends on the application and accuracy of the sensor model you have.

	E+E - Humidity Calibration Kit (P/N: HA010400-HA011595) The E+E Humidity Calibration Kit is a cost effective solution for calibrating humidity measuring instruments with sensing probes Ø 10-12 mm (0.4-0.47 inch). It is very easy to use and does not require a highly qualified technical staff. The kit consists of a humidity calibration chamber and a choice of E+E Humidity Standard Sets.	Starting at: $89.00
	Edgetech Instruments - Portable Calibrator - %RH, Dew Point, Temperature (P/N: RH-CAL) Features: Edgetech field proven Optical Chilled Mirror (OCM) technology Completely self-sufficient and portable humidity calibration system Highest accuracy available for both Relative Humidity (RH) and Ambient Temperature (AT): RH Accuracy: ± 0.5% over RH Range: 5% to 95% AT Accuracy: ± 0.2°C over AT Range: 10°C to 50°C Test chamber is temperature and RH controlled independently Accepts standard port sizes for RH probes: 10, 12, 18 mm, 1/2, and 3/4 inch diameter Automatic correction for mirror contaminants Certified measurements against NIST traceable standards Excellent software is available to automate your calibration process	$15,750.00
	E+E - High-precision Humidity Calibrator (P/N: HUMOR 20) Features: Highest accuracy reference device (0.3 - 0.9% RH) Fundamental dual pressure reactor principle Range: 10...95% RH Independent from the ambient temperature Very fast stabilization time: < 3 min/measuring point Automatic multiple point calibration cycles Portable	Starting at: $35,963.00

E+E Elektronik - PRODUCT CONFIGURATION - NOTES

1. Please configure your model number by pressing the "Configure Options" button.
2. After configuration, press the "Add to Cart" button to enter the shopping cart, and then either:

• Select the "Check Out" button to purchase online, OR
• Select the "Request a Quote" button and we will send you a formal quote within 1 business day or less.
