UNIK 5000 Pressure Sensing Platform
The High-Performance Pressure Sensing Platform, UNIK 5000, allows you to choose from over 350+ Million Product Configurations.
Organized in the table below by the electrical connector type, of which there are sixteen styles to choose from, we have them arranged as 4 rows by 4 columns. When a particular product is selected, the electrical outputs (ten different types to choose from), pressure range (selectable from 0 to 10,000 psi), pressure reference (gauge, absolute, differential), and other parameters are configured via dropdown menus. PLEASE NOTE: In the model number title, the "X" refers to the configurable electrical output, of which there are ten different types, such as millivolt, 4-20 mA (2-wire), and various voltage ranges.
Product Categories
Druck - UNIK5000 (500X) Pressure Sensor (No Electrical Connector)
Stainless Steel body (1" diameter), X = Electrical Output (choose from ten different types). Multiple pressure connectors, hazardous area certifications, and accuracies.
Druck - UNIK5000 (501X) Pressure Sensor (Polyurethane Cable Gland)
Stainless Steel body (1" diameter), X = Electrical Output (ten different types). Multiple pressure connectors, hazardous area certifications, and accuracies. Custom cable lengths.
Druck - UNIK5000 (502X) Pressure Sensor (Raychem Cable)
Stainless Steel body (1" diameter), X = Electrical Output (ten different types). Multiple pressure connectors, hazardous area certifications, and accuracies. Custom cable lengths.
Druck - UNIK5000 (503X) Submersible Pressure Sensor (Polyurethane Cable)
Stainless Steel body (1" diameter), Polyurethane Cable, Output Type (selectable) = 4-20 mA, 0-5Vdc, 0-10Vdc, 0-100 mV, 0.5-4.5 ratiometric etc.
Druck - UNIK5000 (504X) Submersible Pressure Sensor (Hytrel Cable)
Stainless Steel body (1" diameter), Hytrel Cable (hydrocarbon resistant), Output Type (selectable) = 4-20 mA, 0-5Vdc, 0-10Vdc, 0-100 mV, 0.5-4.5 ratiometric etc.

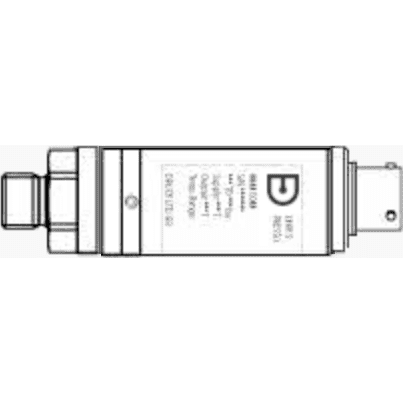

Druck - UNIK5000 (506X) Pressure Sensor (MIL-C-26482)
Stainless Steel body (1" diameter) & MIL-C-26482 Electrical Connector. Electrical Output Type (selectable), either mV, voltage output (0-5, 0-10 Vdc etc), or mA. Choose a pressure connector from a list of 32+ types

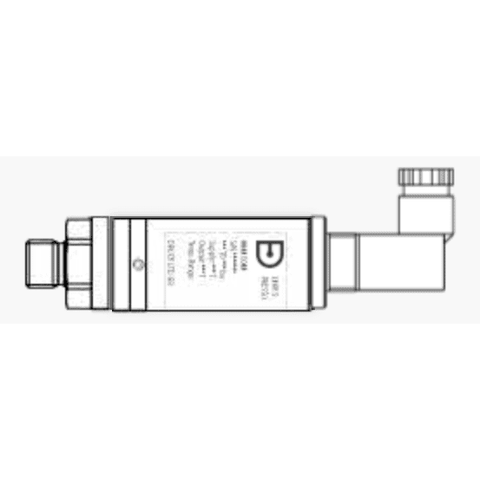

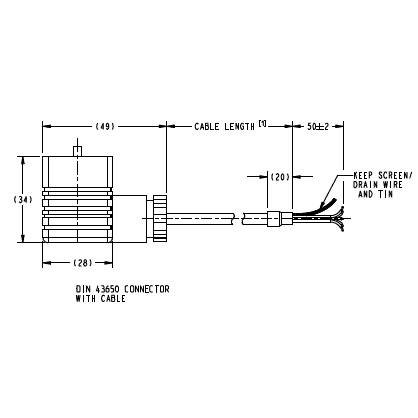

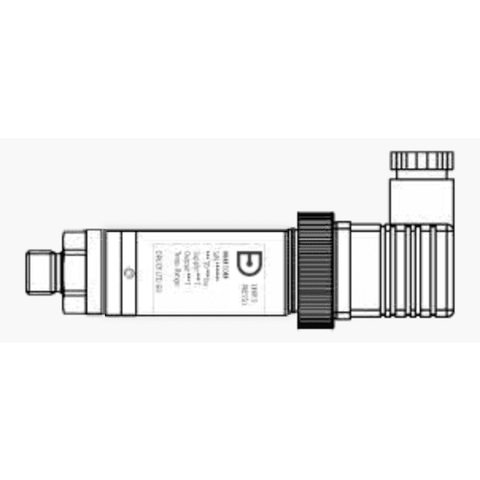

Druck - UNIK5000 (507X) Pressure Sensor (DIN 43650)
Stainless Steel body (1" diameter), X = Electrical Output Type (selectable), either mV, voltage output (0-5, 0-10 Vdc etc), or mA. Choose a pressure connector from a list of 32+ types.

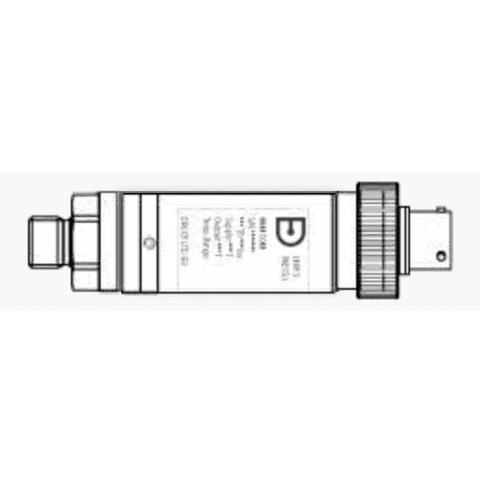

Druck - UNIK5000 (50AX) Pressure Sensor (Demountable MIL-C-26842)
Stainless Steel body (1" diameter), X = Electrical Output Type (selectable), either mV, voltage output (0-5, 0-10 Vdc etc), or mA. Choose a pressure connector from a list of 32+ types.
Druck - UNIK5000 (50CX) Pressure Sensor (1/2" Conduit, Polyurethane Cable)
Stainless Steel body (1" diameter), X = Electrical Output Type (selectable), either mV, voltage output (0-5, 0-10 Vdc etc), or mA. Choose a pressure connector from a list of 32+ types.
Druck - UNIK5000 (50DX) Pressure Sensor (Micro DIN)
Stainless Steel body (1" diameter), X = Electrical Output Type (selectable), either mV, voltage output (0-5, 0-10 Vdc etc), or mA. Choose a pressure connector from a list of 32+ types.
Druck - UNIK5000 (50EX) Pressure Sensor (MIL-C-26482 Alternative Wiring)
Stainless Steel body (1" diameter), X = Electrical Output Type (selectable), either mV, voltage output (0-5, 0-10 Vdc etc), or mA. Choose a pressure connector from a list of 32+ types.
Druck - UNIK5000 (50FX) Pressure Sensor (Demount MIL-C-26482 Alternative Wiring)
Stainless Steel body (1" diameter), X = Electrical Output Type (selectable), either mV, voltage output (0-5, 0-10 Vdc etc), or mA. Choose a pressure connector from a list of 32+ types.
Druck - UNIK5000 (50GX) Pressure Sensor (M12 x 1, 4-Pin Male Connector)
Stainless Steel body (1" diameter), X = Electrical Output Type (selectable), either mV, voltage output (0-5, 0-10 Vdc etc), or mA. Choose a pressure connector from a list of 32+ types.

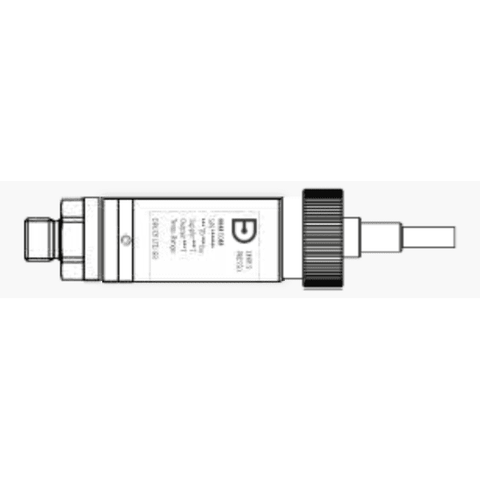

Druck - UNIK5000 (50KX) Pressure Sensor (Zero Halogen Cable Demountable)
Stainless Steel body (1" diameter), X = Electrical Output Type (selectable), either mV, voltage output (0-5, 0-10 Vdc etc), or mA. Choose a pressure connector from a list of 32+ types.
Druck - UNIK5000 (50NX) Submersible Pressure Sensor (Kynar Cable)
Stainless Steel body (1" diameter), Kynar Depth Cable, Output Type (selectable) = 4-20 mA, 0-5Vdc, 0-10Vdc, 0-100 mV, 0.5-4.5 ratiometric etc.

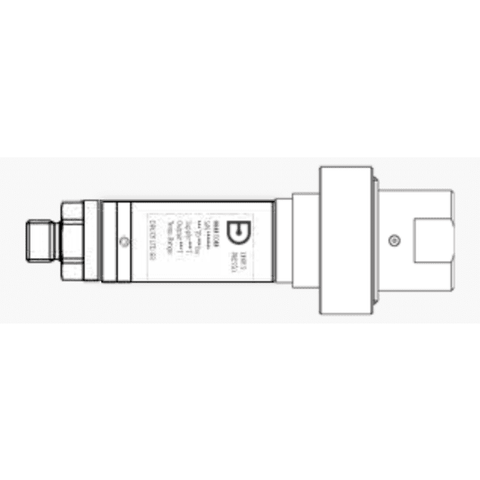

Druck - UNIK5000 (50R2) - PTX50R2 Pressure Sensor (M20 x 1.5 Inline Conduit)
M20 x 1.5 Inline Female Conduit Demountable Electrical Connector, Stainless Steel body (1" diameter), 4-20 mA Output. Choose a pressure connector from a list of 32+ types.
